HDPE Fusion

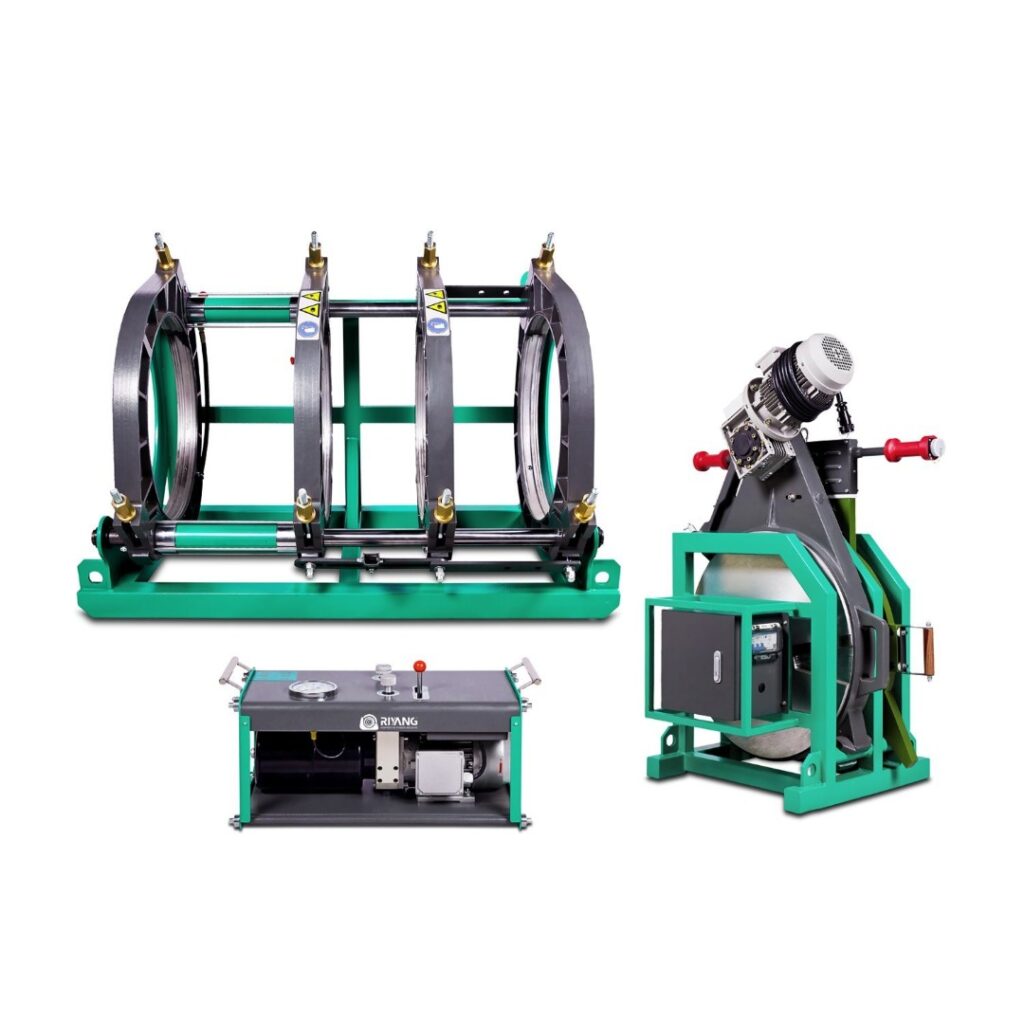

Hydraulic butt fusion machines

Manual hydraulic butt fusion machines are used to joint PE, PP, PPR and PVDF pipes and moulded fittings.

HIGH QUALITY FUSION MACHINES

Built from a selection of components offering a long service life ensuring low maintenance and reliable operation.

  • Only one external power supply needed.
  • Temperature controller easily adjustable.
  • Hydraulic unit encased by detachable frame, for easier maintenance and repair.
  • Max. Pressure, up to O.D. 355mm – 80bar; O.D. 450mm to 630mm – 120bar; O.D. 800-1200mm – 160bar.
  • Accurate and maintenance-free gauge showing the welding pressure.
  • USB charging port ready for your mobile phone or tablet.
  • Quickly and easily upgrade hydraulic unit with RIYANG data logger for welding report.
  • Certification – CE, ISO9001:2008
  • 2 Year warranty

V Series small range

5 machines are available in the “small” range covering pipe diameters from 50mm up to 355mm.

Power supply: 220v

Standard configuration:

  • Machine body with 4 clamps and 2 hydraulic cylinders with quick couplings;
  • Teflon coated heating plate with separate temperature control system;
  • Electrical trimmer;
  • Hydraulic hoses with quick couplings;
  • Stand for milling cutter and heating plate.

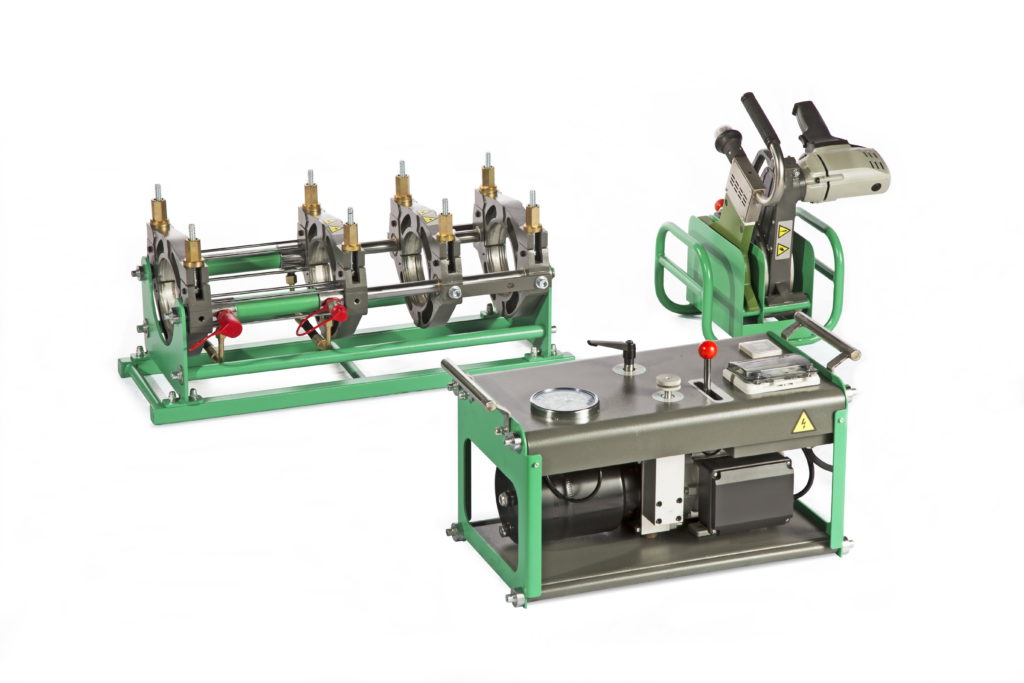

  1. V160 – 50, 63, 75, 90, 110, 125, 140, 160mm
  2. V200 – 63, 75, 90, 110, 125, 140, 160, 180mm
  3. V250 – (75)*, 90, 110, 125, 140, 160, 180, 200, 225, 250mm
  4. V315 – 90, 110, 125, 140, 160, 180, 200, 225, 250, 280, 315mm
  5. V355 – 90, 110, 125, 140, 160, 180, 200, 225, 250, 280, 315, 355mm

*Available as an option

V SERIES MEDIUM RANGE​

3 machines are available in the “medium” range covering pipe diameters from 200mm up to 630mm.

Power supply: 380v

Standard configuration:

  • Machine body with 4 clamps and 2 hydraulic cylinders with quick couplings;
  • Teflon coated heating plate with separate temperature control system;
  • Electrical trimmer;
  • Electrical cabinet;
  • Hydraulic hoses with quick couplings;
  • Stand for milling cutter and heating plate.

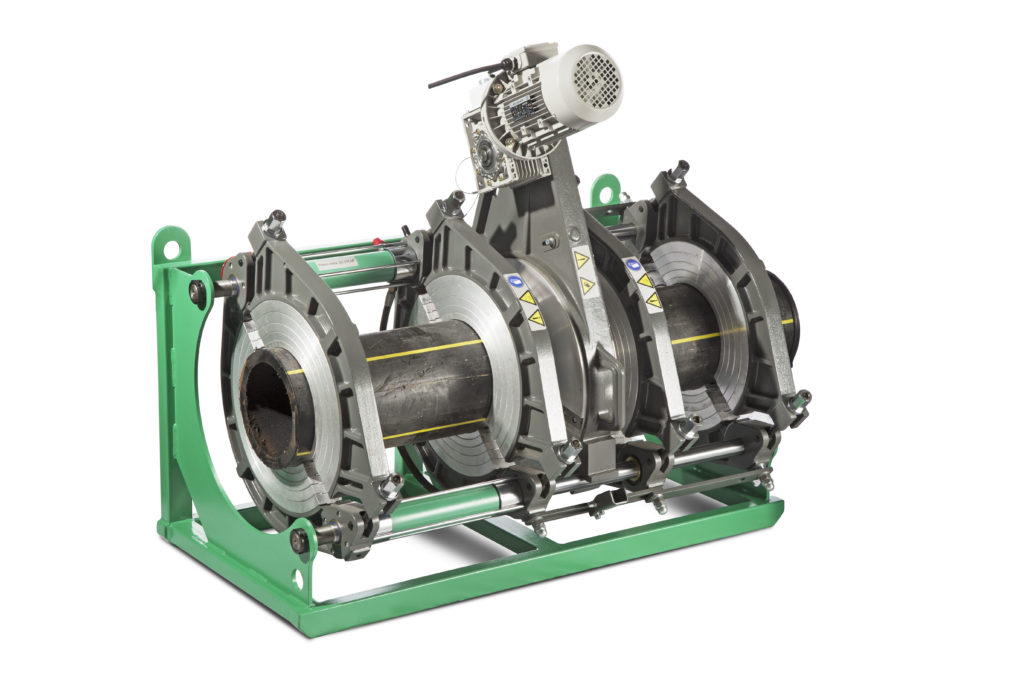

  1. V450 – 200, 225, 250, 280, 315, 355, 400, 450mm
  2. V500 – (200, 225, 250)*, 280, 315, 355, 400, 450, 500mm
  3. V630 – 315, 355, 400, 450, 500, 560, 630mm

*Available as an option

V SERIES LARGE RANGE

3 machines are available in the “large” range covering pipe diameters from 500mm up to 1200mm.

Power supply: 380v

Standard configuration:

  • Machine body with 4 clamps and 2 hydraulic cylinders with quick couplings;
  • Teflon coated heating plate with separate temperature control system;
  • Electrical trimmer;
  • Electrical cabinet;
  • Hydraulic hoses with quick couplings;
  • Stand for milling cutter and heating plate.

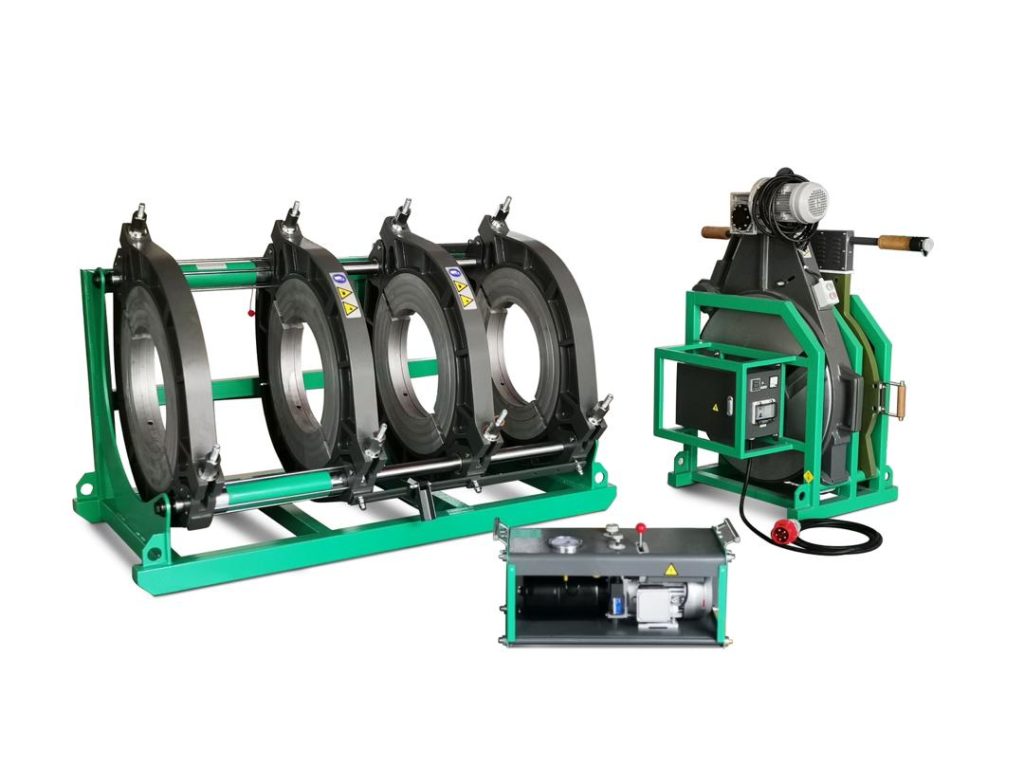

  1. V800 – (400, 450)*500, 560, 630, 710, 800mm
  2. V1000 – 630, 710, 800, 900, 1000mm
  3. V1200 – 630, 710, 800, 900, 1000, 1200mm

*Available as an option

Optional accessories

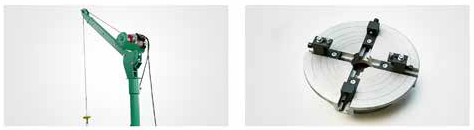

  • Electrical crane
  • Stub end device
  • Data logger
  • Support roller
