Vivax Metrotech

The vLoc3-Cam is the easiest to use sonde and camera locator on the market today. The omni-directional antenna array allows for approaching the sonde from any position. Simple to decipher, directional arrows direct the user through the bright colour LCD display to the accurate location and depth of the sonde or camera.  The sonde is displayed as a picture on the display for ease of identification.  This new technology with its two sets of 3D antennas provides consistently accurate results with the simplest interface available on the market.

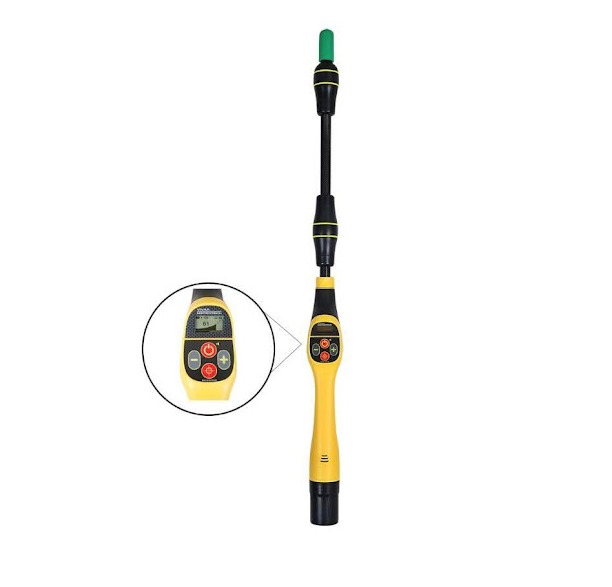

The VM-540 Sonde Locator is designed for reliable daily use in hostile environments. The VM-540 is compatible with many Sondes & CCTV systems manufactured by others as well as those from Vivax-Metrotech.

The VM-540 Sonde Locator features:

• Compact and lightweight
• Power Mode
• Pushbutton Depth

Accessories

Note that sondes are only compatible with receivers that have matching sonde frequencies.

• vLoc-9800 receiver is compatible with 9kHz and 83kHz Sondes.
• vLocCam2 and VM-540 receiver is compatible with 512Hz, 640Hz and 33kHz Sondes.
• vScan receiver is compatible with 33kHz Sondes.
• VM-810 receiver is compatible with 83kHz Sondes.
• VM-850 receiver is compatible with 9kHz Sondes.
• The Spar unit works only with sondes under 10kHz.

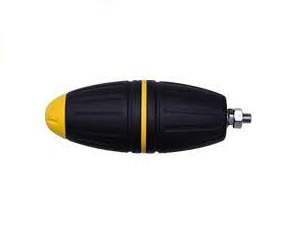

• 18mm x 63mm
• 33kHz frequency
• 4,5m range
• 2 button cell batteries
• 10mm studded eyelet end cap

• 22mm x 114,3mm
• 9,8kHz and 83kHz frequency
• 5m range
• 4 LR43 button cell batteries

• 38mm x 105mm
• 9,82kHz, 33kHz and 83kHz frequency
• 5m
• 1 AA battery

• 23mm x 440mm
• 512Hz and 640Hz frequency
• 6m range
• 1 AA LR6 alkaline battery

• 64mm x 186mm
• 9.82kHz, 33kHz and 83kHz frequency
• 8m range
• 1 LR61 battery
