Pipeline Inspection Cameras
Optical inspection systems for fresh water, sewage water, cavity inspection and industrial inspection. Inspection for in-house facilities such as swimming pools, air heating, heat exchangers, chimneys, roofs and facade building. All minCam cameras are rugged and are built for daily use. The camera heads are made for optical inspection of wells, drains, sewers, drainpipes, freshwater pipes and all other pipes in the industry.
Portable and industrial design allows operation anywhere

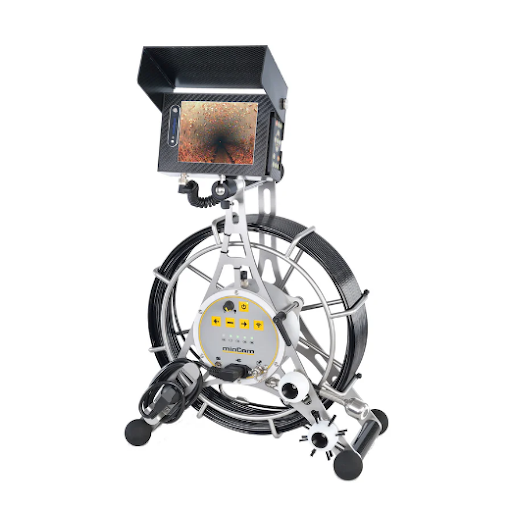

The minCam MC30 push camera is utilised for inspecting heat exchangers tubes, boilers, chillers, pipes, and floor drains from 15mm – 150mm ID. 30 m length, video and image recording, 3-hour internal battery, interchangeable camera heads.

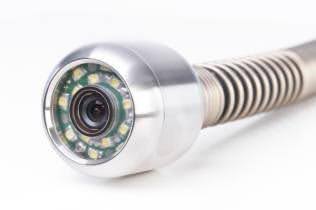

The KK13 camera head is used similarly to a videoscope or borescope to inspect heat exchangers, swimming pool pipes and excavations among other sites. The KK18 camera is one of the most versatile cameras available in the range.
Learn More about our Mincam products
KK13 Camera
- Ø 13mm and 9mm cylinder length
- 3 bar waterproof
- 480 TV-lines
- 0.02 Lux
- 90° view angle
KK18 camera head
- Ø 18mm and 10mm cylinder length
- 5 bar waterproof
- 480 TV-lines
- 0.02 Lux
- 90° view angle
KK29SL camera
- Ø 29mm and 16mm cylinder length
- 10 bar waterproof
- 480 TV-lines
- 0.02 Lux
- 140° view angle
KK55SL camera head
- Ø 55mm and 36mm cylinder length
- 10 bar waterproof
- 480 TV-lines
- 0.05 Lux
- 120° view angle
- Self-Levelling
